| BLASTING CABIN | width | 1.750 mm |
| height | 2.000 mm | |
| depth | 1.300 mm | |
| weight | 350 kg | |
| ------------ | ------------ | |
| BLASTING SPACE | width | 1.000 mm |
| height | 750 mm | |
| depth | 950 mm | |
| load capacity | 200 kg | |
| ------------ | ------------ | |
| BLASTING SYSTEM | blast gun | 1 x SPA 80 |
| air nozzle | 4,0 mm | |
| blast nozzle | 11,0 mm | |
| ------------ | ------------ | |
| CONSUMPTION | compressed air (4 bar) | 0,73 m3/min |
| electricity | 1,0 KW |
- PS hand cabins
- Manual Blast Cabinet J
- Manual Blast Cabinet K
- Hand blasting N
- Satellite Blast Machine
- Conveyor Blast Machine
- Overhead conveyor shot blasting machines
- Turntable Blast Machine
- Batch Blasting Machine
- Industrial Blast Systems
- Blasting machines by blasting process
- Blasting machines by finishing application
-
Used Blasting Equipment

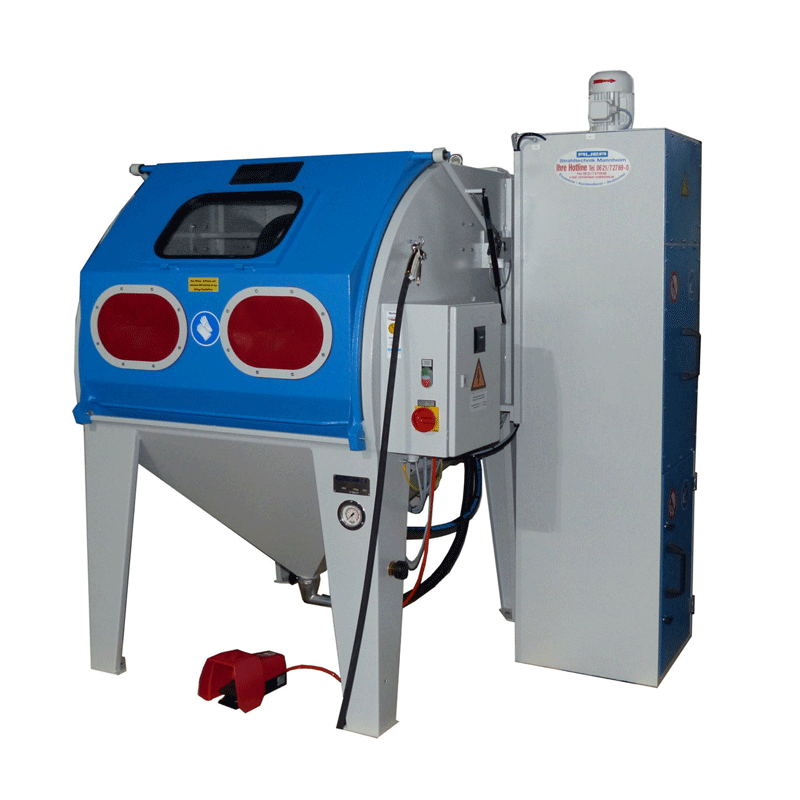

AUER injector blasting machine ST 1000 PS
TECHNICAL DATASCOPE OF DELIVERY APPLICATIONS
| STANDARD | OPTIONAL |
Front sliding door with safety switch Stable work grid with 200 kg capacity Double reach through opening Look through window Control cabinet according to VDE 0013 Compact built in dust collector with cartridge filters and dust bagging Pressure regulator and pressure gauge Foot switch | Available with a rotating basket for automatic batch processing |
Ablation | Removing paint | Removing rust |
Finishing | Smoothing | Matting |
Structuring | Refining |
